SPECIFICATIONS: Power classes 370W Module effiency 15.4% to 19% Dimensions 1956 x 992 x 35 mm Dimensions 1956 x 992 x 40 mm Dimensions 1956 x 992 x 45 mm Weight 21.5 kg Frame Aluminium hollowchamber frame on each side Glass Low-iron and tempered glass 3.2 mm Cells 72 pcs monocrystalline Si-cells (156 x 156 mm) Cell Embedding EVA Back-Foil TPT / TPE / BBF Junction Box TÜV certified Cable 4 mm² solar cable 2 x 900 mm Temperature Range -40°C ... +85°C Load Capacity 5400 Pa (IEC 61215)

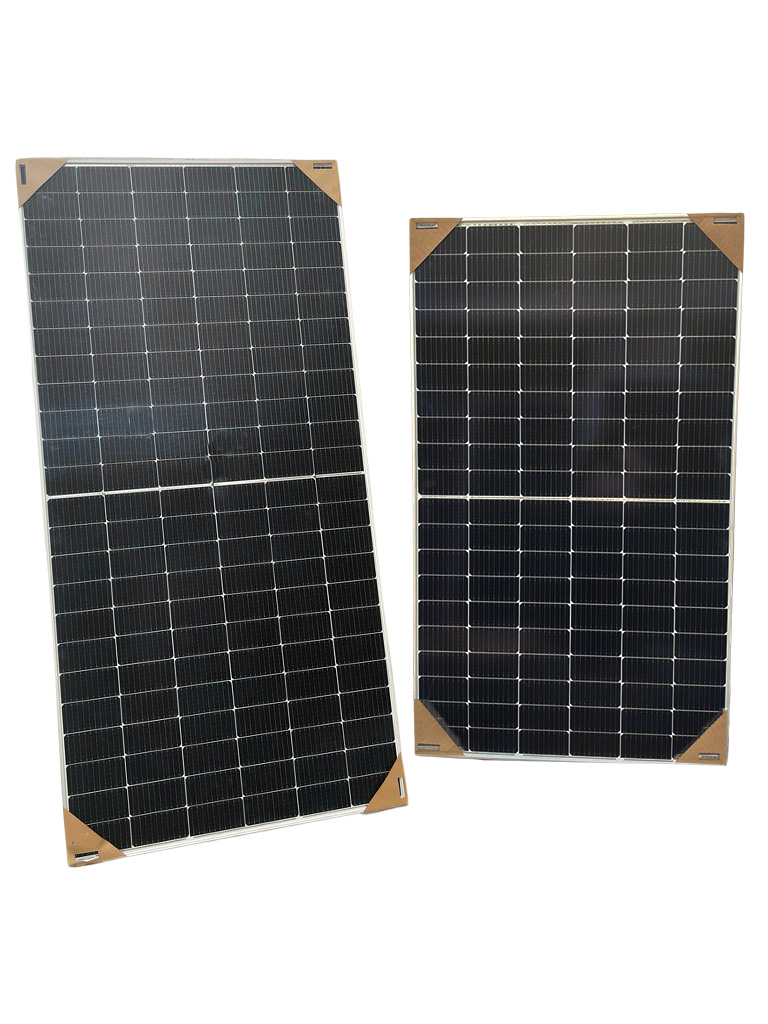

Monocrystalline solar module
With 72 cells and 3 bypass diodes in power classes from 340 to 370 Wp for grid connected systems.
The high quality level of ERA SOLAR guarantees long life-time and high earnings.
An Aluminium hollow-chamber frame on each side combined with low-iron and tempered solar glass ensures high load capacity resistance.
JA SOLAR grants a power guarantee of 90% of nominal power output up to 10 years and 80% up to 25 years.
